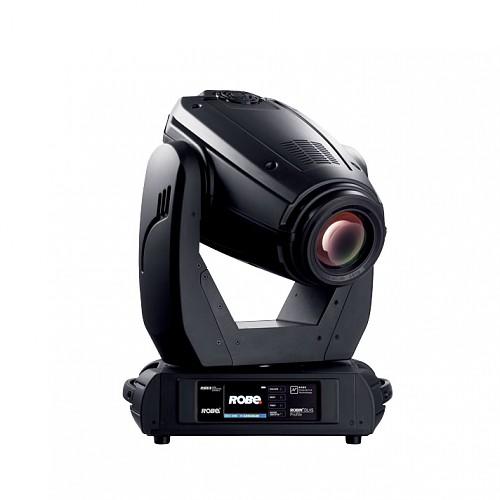

Robe DL4S Profile

£60

£120

Light source: 480 W RGBW LED engine
Rotating Gobo wheel: 7 rotating, indexable, replaceable “SLOT&LOCK” metal gobos + open
Framing shutters: 4 individually positionable blades plus rotation of the complete frame system +- 45 degrees
Animation wheel: Aluminium
Iris: Motorized, stepless, pulse effects up to 3 Hz
Prism: 3-facet 11 degrees prism rotating in both directions at different speeds
Frost filter: Separate, variable
Motorized zoom: 10 degrees (gobo position) – 45 degrees (free hole)
Focus: Motorized
Pan: 540 degrees
Tilt: 280 degrees
User Interface: Colour Touch Screen – ROBE Navigation System 2 (RNS2), battery backup
Protocols: DMX-512, RDM, ArtNet, MA Net, MA Net2, sACN
DMX modes (channels): 47, 38, 36
Programs: 3-editable, each up to 100 steps
Stand-alone operation: Yes
Pan/Tilt resolution: 8 or 16 bit
Movement control: Tracking and vector
Rotating gobo wheel positioning: 8 bit
Gobo indexing & rotation: 8 or 16 bit
Pre-programmed 237 colours including whites (2.700 K, 3.200 K, 4.200 K, 5.600 K and 8.000 K)
Tungsten lamp emulation: Whites 2.700 K and 3.200 K
CTO filter: Variable
Colour rainbow effect: Variable speed
Colour mixing (Internal 18 bit): 8 or 16 bit
Framing shutters system: 8 bit
Animation wheel : 8 bit
Iris: 8 or 16 bit
Frost: 8 bit
Zoom: 8 or 16 bit
Focus: 8 or 16 bit
Dimmer (Internal 18 bit): 8 or 16 bit
Strobe effect: Variable speed, 20 flashes per second max.
Data in/out: Locking 3-pin & 5-pin XLR, RJ45
Power connection: Neutrik PowerCon (cable supplied)
